AC Gear Motors

Foot Mounted Gear Motors

  • Impact size and structure with precision gear process ensure low vibration and noise
  • Aluminum housing benefits heat diffusion
  • Output 100W (1/8HP) ~ 2200W (3HP)
  • Wide range of application with brake and various AC power supply options
  • Thermo switch available (optional)
  • CE (EMC & LVD), UL, CCC certified

Output 100W-200W

Foot Mounted Gear Motors Specifications

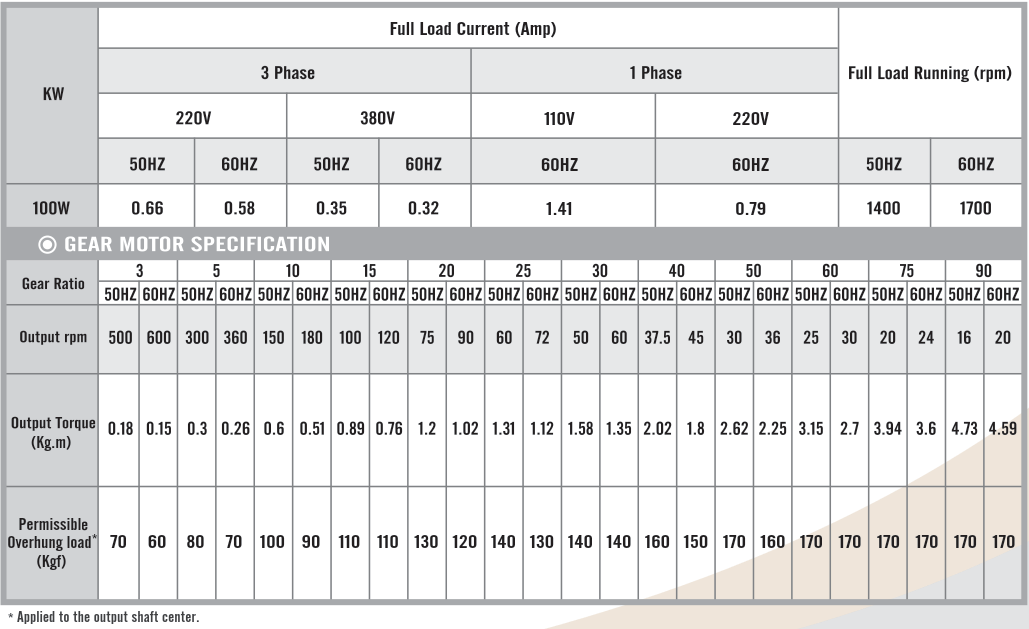

G11H100, Output 100W (1/8 HP)

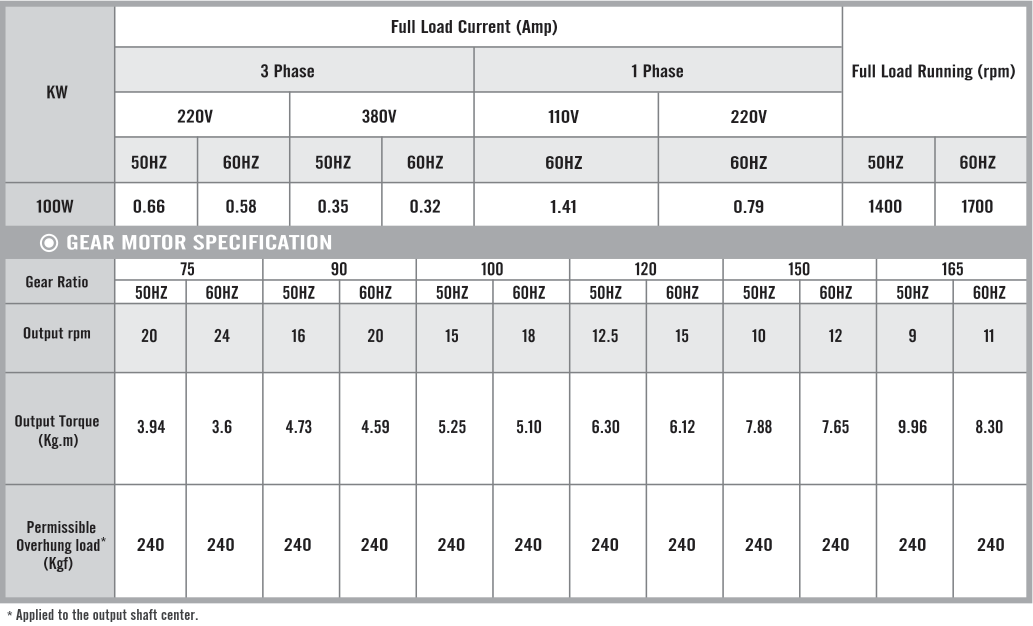

G12H100, Output 100W (1/8 HP)

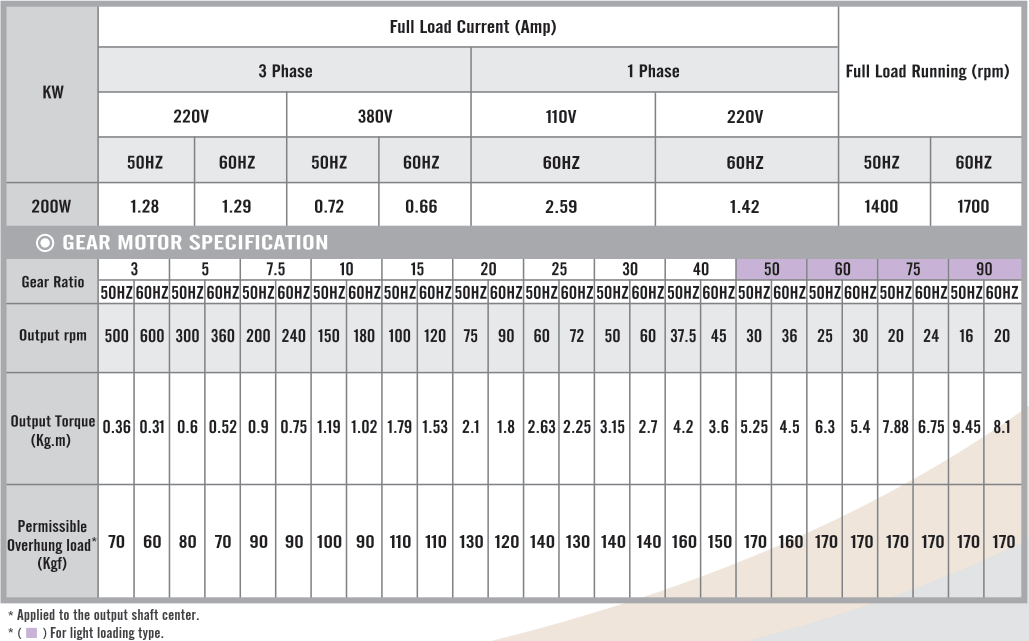

G11H200, Output 200W (1/4 HP)

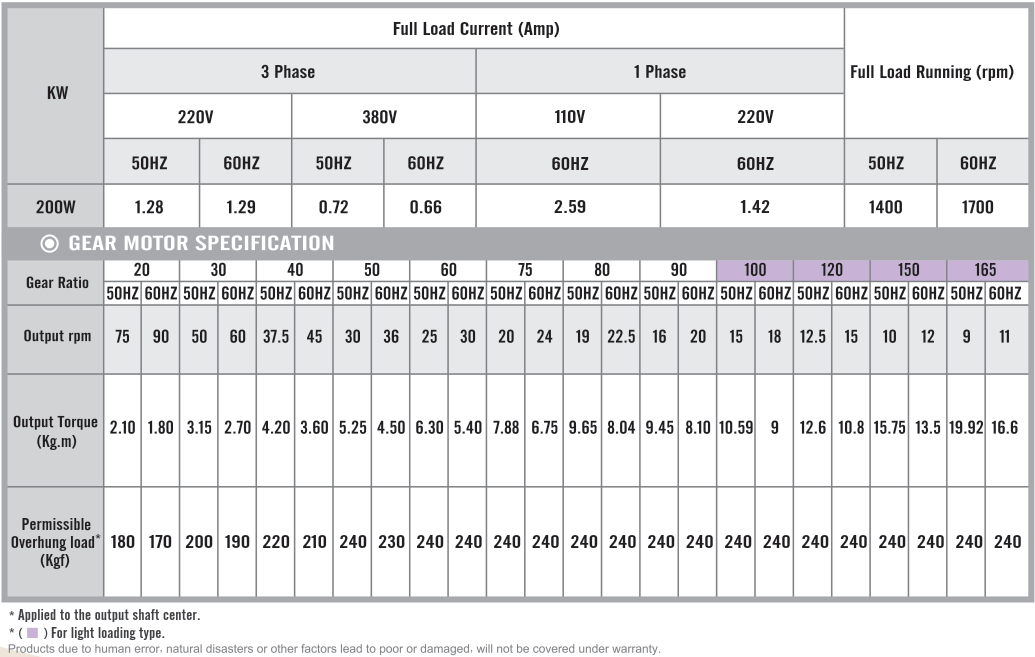

G12H200, Output 200W (1/4 HP)

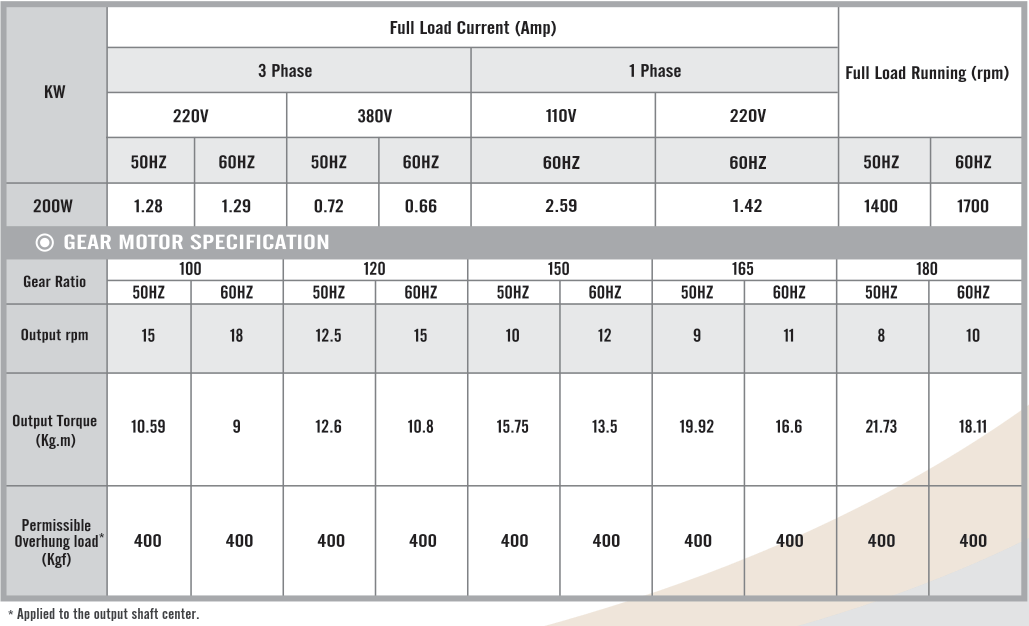

G13H200, Output 200W (1/4 HP)

Output 400W-750W

Foot Mounted Gear Motors Specifications

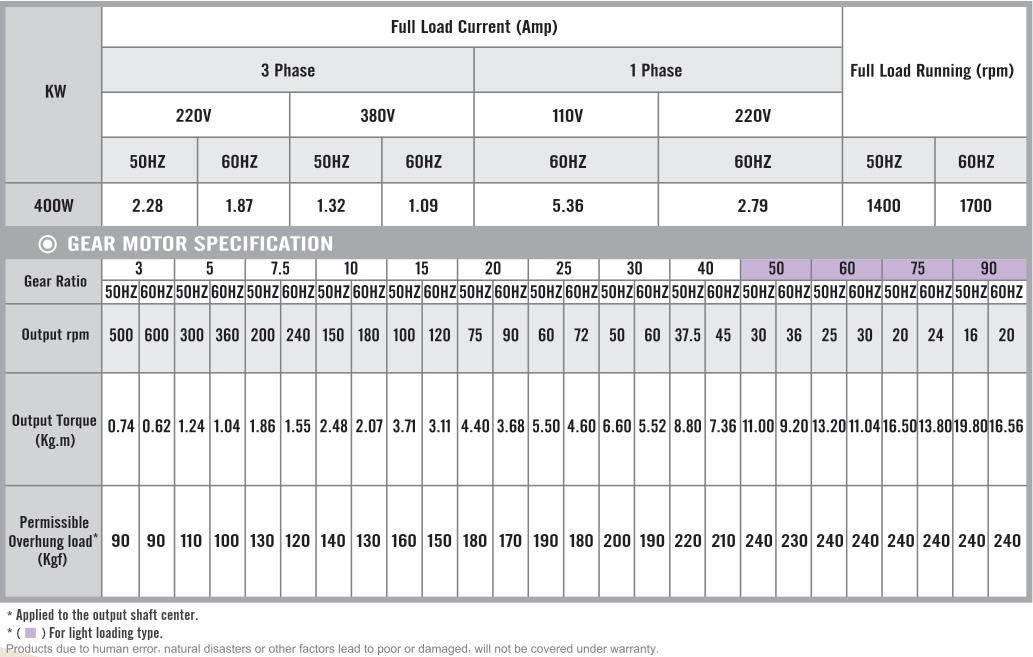

G12H400, Output 400W (1/2 HP)

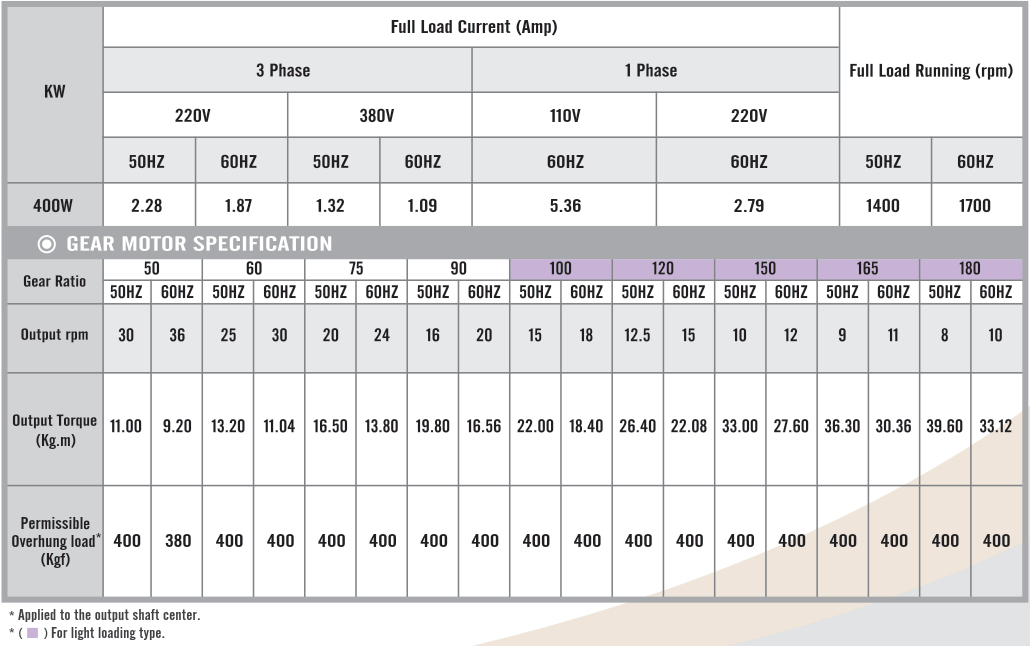

G13H400, Output 400W (1/2 HP)

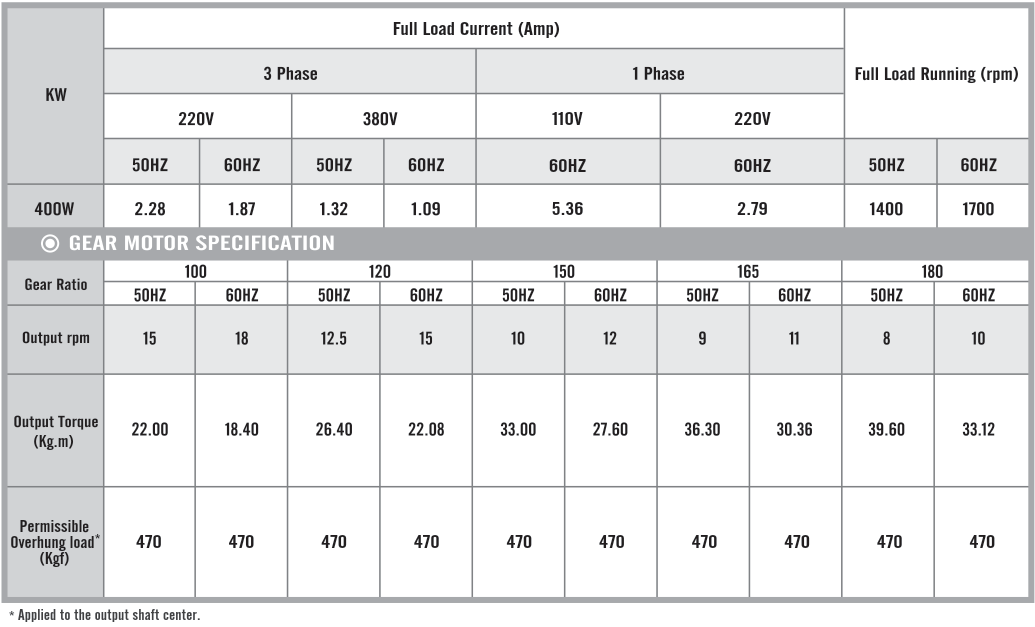

G14H400, Output 400W (1/2 HP)

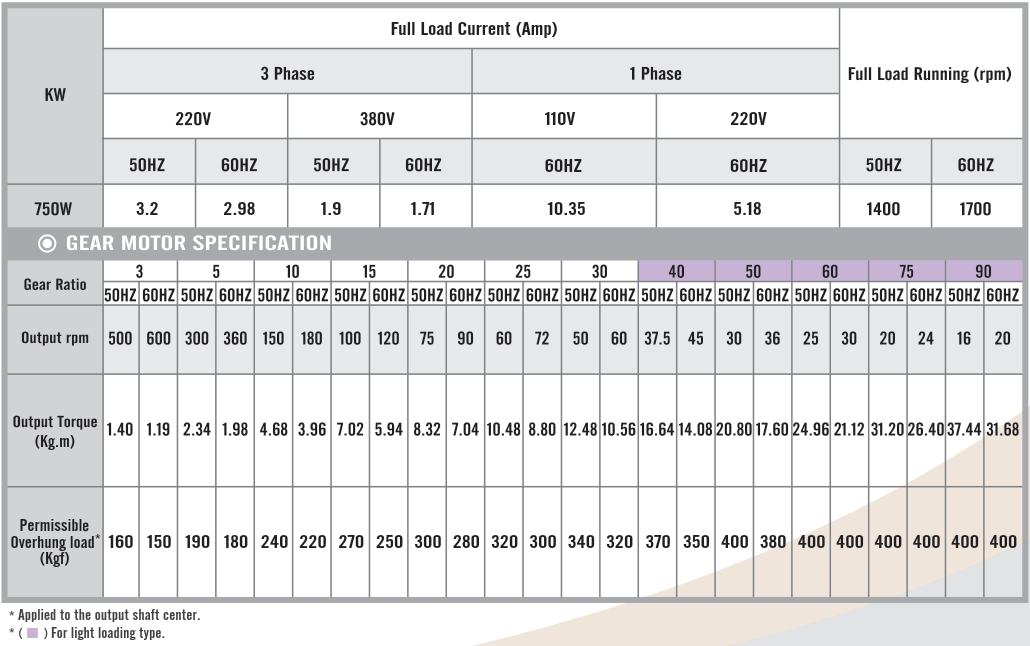

G13H750, Output 750W (1 HP)

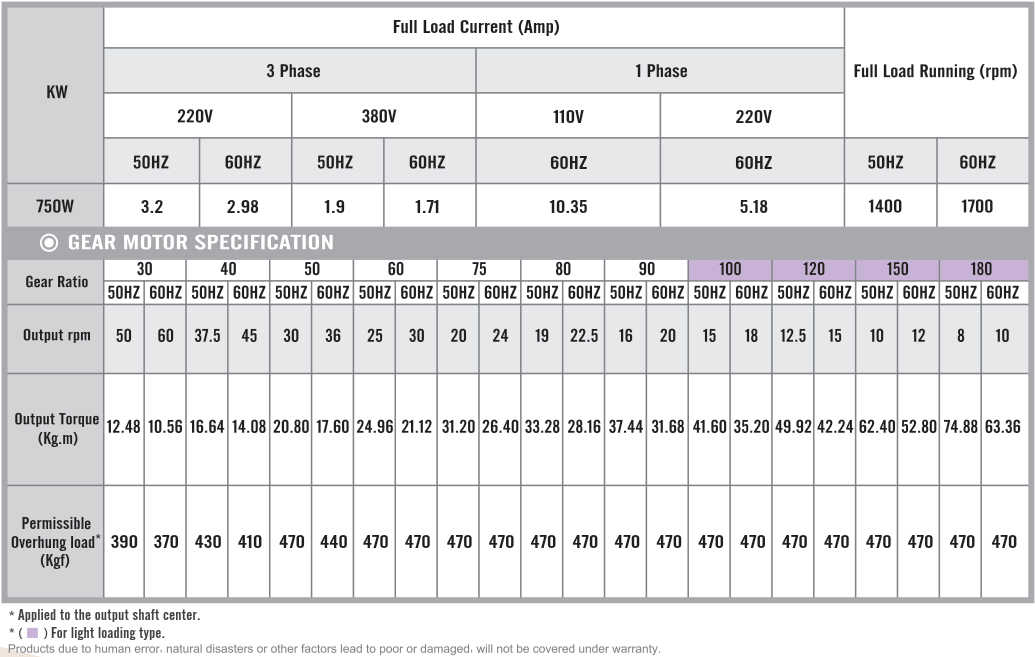

G14H750, Output 750W (1 HP)

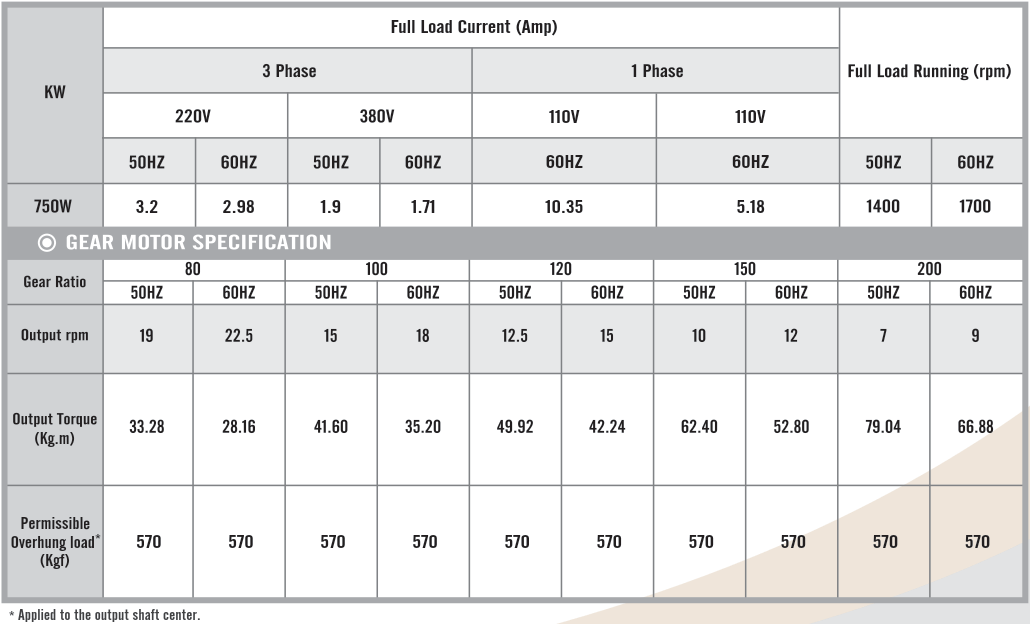

G15H750, Output 750W (1 HP)

Output 1.5kW-2.2W

Foot Mounted Gear Motors Specifications

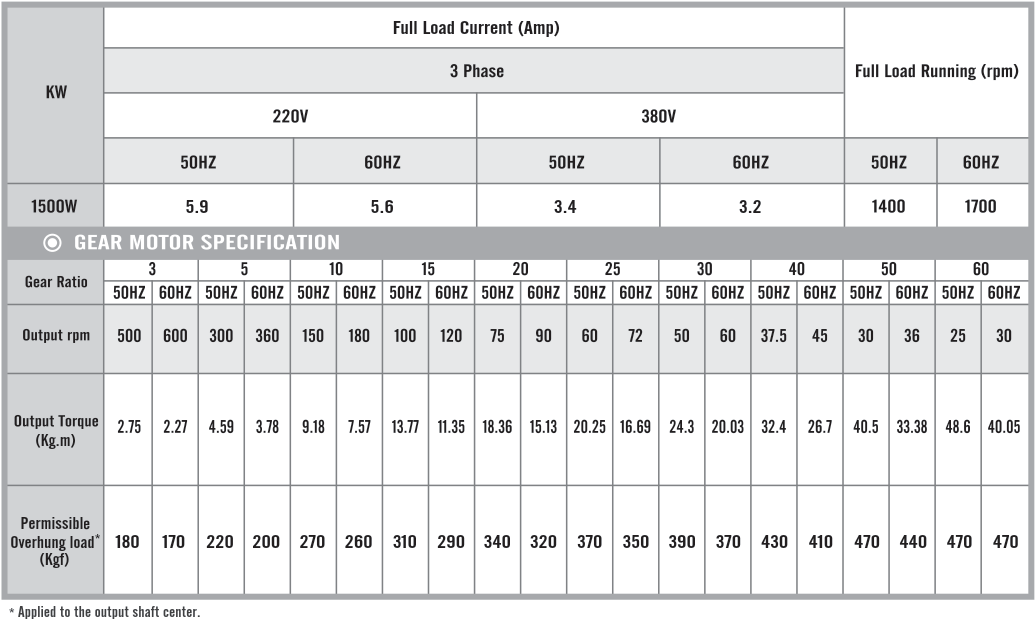

G14H1500, Output 1.5kW (2 HP)

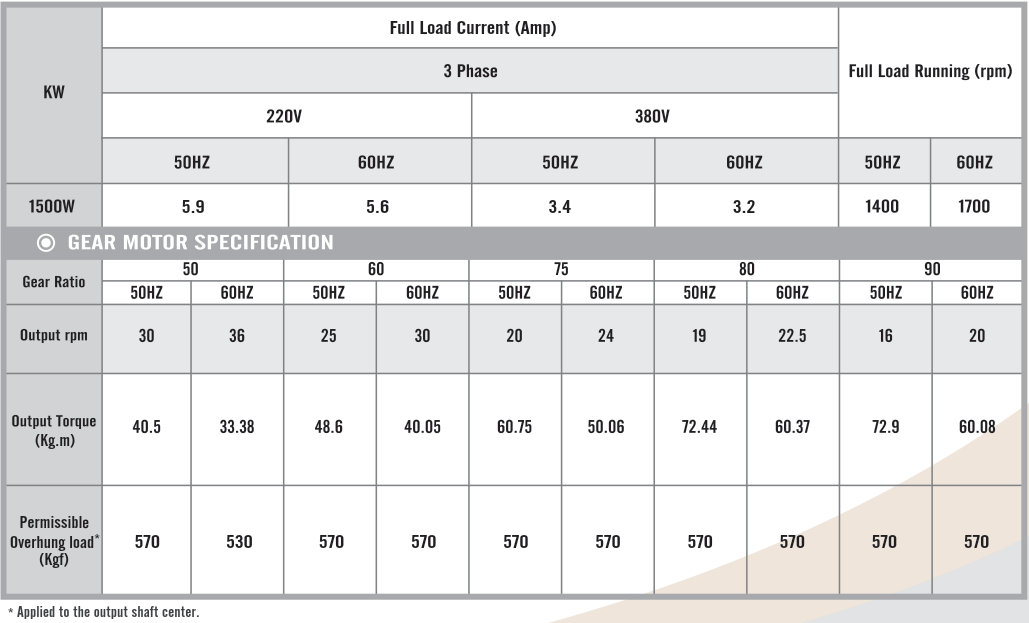

G15H1500, Output 1.5kW (2 HP)

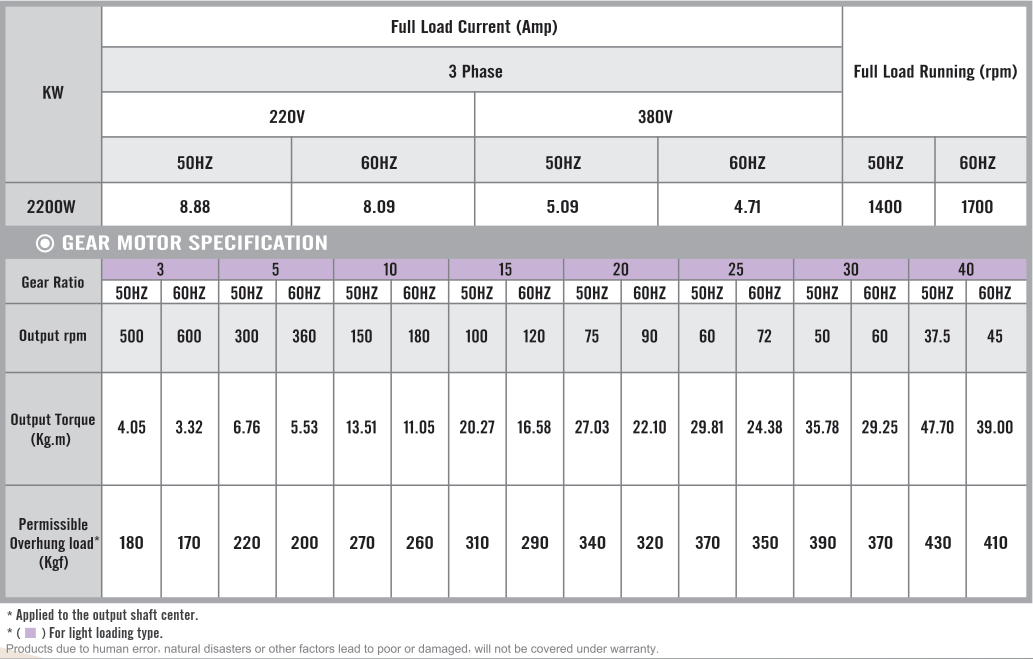

G14H2200, Output 2.2kW (3 HP)

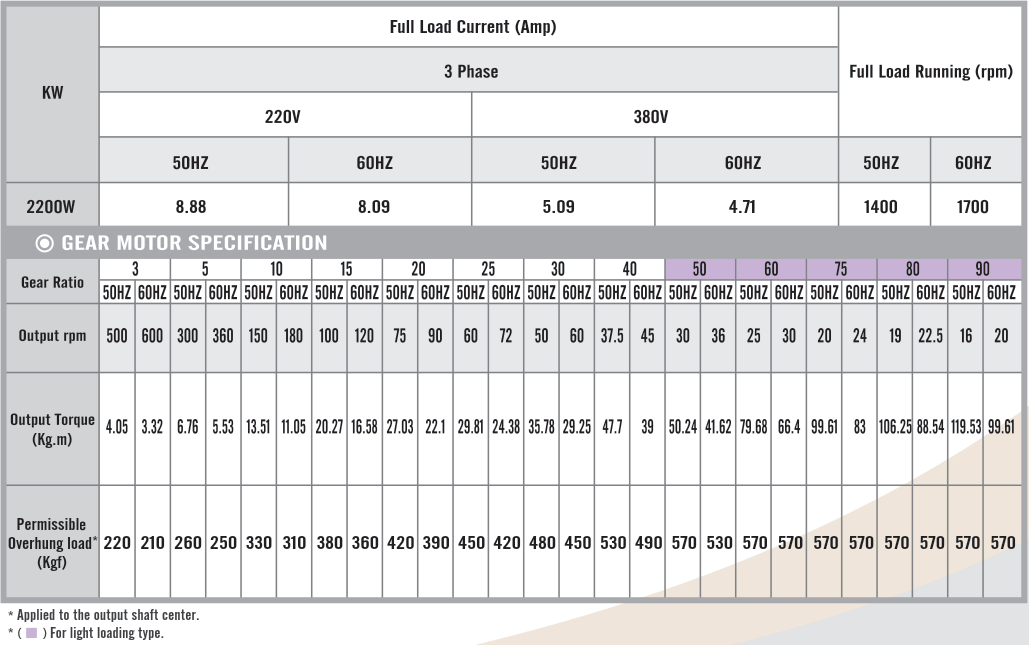

G15H2200, Output 2.2kW (3 HP)
