Planetary Gearboxes - Output Shaft
Precision Type
3 levels of backlash, 4 design configurations
7 frame sizes 42-220 mm
Square or round mounting, ratio from 3 - 100:1
Stainless steel series available
Planets with full needle bearing support
Adapters for all servo motors
7 frame sizes 42-220 mm
Square or round mounting, ratio from 3 - 100:1
Stainless steel series available
Planets with full needle bearing support
Adapters for all servo motors

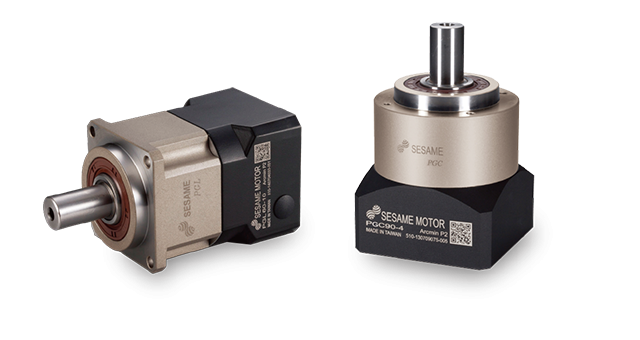

PGL Serie
This most seller precision type planetary speed reducer is offering 3 precision levels and 7 frame sizes to choose. They are ready for most industry and motion control applications. Square mounting flange, caged precision class spur planetary gears in an inline housing through sizes 220 mm. Years of manufacturing and generations improves bring high torque capacity, quiet operation and steady performance with backlash as low as < 3 arcmin. Ratios 3:1 to 100:1.Features
- Inline configuration with output shaft 13 mm through 75 mm diameter
- Torque capacity range: 10 Nm through 1670 Nm
- Caged planet carrier: with precision planet gear set
- High performance, efficiencies and low acoustics
- Wide range of ratios: 8 single stage ratios and up to 13 two-stage ratios
- Output bearings deliver radial load capacity as high as 13500 N, and axial capacities up to 7300 N
- Square servo and step motor input: accommodates 40 mm through 220 mm, with optional sizes available
Specs
- Frame size (mm): 42, 60, 90, 115, 142, 180, 220
- Ratio: 3-100:1
- Nominal input speed (rpm): 2000-3000
- Max. input speed (rpm): 4000-6000
- Backlash (arcmin): 3-12 single stage, 5-15 two stages
- Noise level (dBA/1m): 60-75
- Enclosure: IP65
- Lubricant: service life synthetic lubricant
PGC Series
This precision type planetary gear reducer is offering 3 precision levels and 7 frame sizes to choose. They are ready for most industry and general servo motor motion control applications. Round mounting flange, caged precision class spur planetary gears in an inline housing through sizes 235 mm. High torque capacity, quiet operation with backlash as low as < 3 arcmin. Ratios 3:1 to 100:1.Features
- Inline configuration with output shaft 13 mm through 75 mm diameter
- Torque capacity range: 10 Nm through 1670 Nm
- Caged planet carrier: with precision planet gear set
- High performance, efficiencies and low acoustics
- Wide range of ratios: 5 single stage ratios and up to 9 two-stage ratios
- Output bearings deliver radial load capacity as high as 11120 N, and axial capacities up to 8560 N
- Square servo and step motor input: accommodates 50 mm through 235 mm, with optional sizes available
- Service life lubricant
Specs
- Frame size (mm): 50, 70, 90, 120, 155, 205, 235
- Ratio: 3-100:1
- Nominal input speed (rpm): 2000-3000
- Max. input speed (rpm): 4000-6000
- Backlash (arcmin): 3-12 single stage, 5-15 two stages
- Noise level (dBA/1m): 60-75
- Enclosure: IP65
- Lubricant: service life synthetic lubricant
PGE Series
PGE precision type planetary gear reducer series are offering 3 precision levels and 7 frame sizes to choose. They are ready for most industry and general servo motor motion control applications. Square mounting flange, caged precision class spur planetary gears in an inline housing through sizes 220 mm. High torque capacity, quiet operation with backlash as low as < 3 arcmin. Ratios 3:1 to 100:1.Features
- Inline configuration with output shaft 13 mm through 75 mm diameter
- Torque capacity range: 10 Nm through 1670 Nm
- Caged planet carrier: with precision planet gear set
- One-piece planet gears carrier & output shaft
- High performance, efficiencies and low acoustics
- Wide range of ratios: 5 single stage ratios and up to 9 two-stage ratios
- Output bearings deliver radial load capacity as high as 13500 N, and axial capacities up to 7300 N
- Square servo and step motor input: accommodates 50 mm through 235 mm, with optional sizes available
- Service life lubricant
Specs
- Frame size (mm): 50, 70, 90, 120, 142, 180, 220
- Ratio: 3-100:1
- Nominal input speed (rpm): 2000-3000
- Max. input speed (rpm): 4000-6000
- Backlash (arcmin): 3-12 single stage, 5-15 two stages
- Noise level (dBA/1m): 60-75
- Enclosure: IP65
- Lubricant: service life synthetic lubricant
