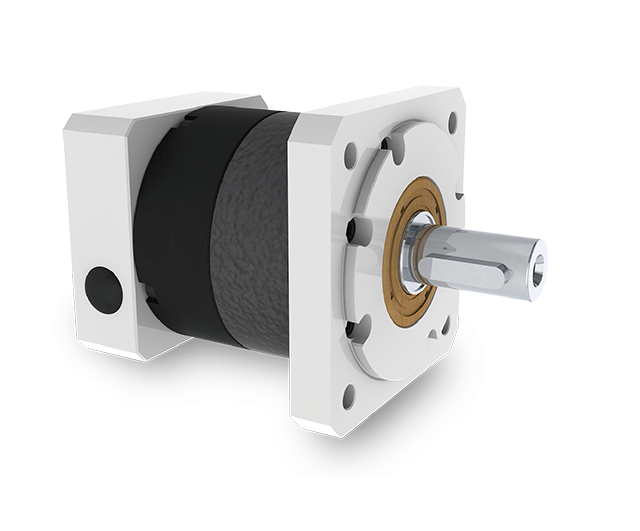

PNSQ Series

The PNSQ combines the best features of standard output shaft series to offer optimized radial and axial loading performance with square installation flange for most common frame size planetary gearbox applications. At least 28 reduction ratio options with the highest one up to 1000:1. You can definitely find the most suitable matching for your demanding.

Features

• Inline configuration with square output flange
• Output shaft 16, 20, 25 mm diameter
• Torque capacity range: 21 Nm through 215 Nm
• Standard planet gear set
• High performance, efficiencies and low acoustics
• Wide range of ratios from 3:1 up to 1000:1
• Output bearings deliver radial load capacity as high as 4370 N, and axial capacities up to 2750 N

Specs

• Frame size (mm): 60, 80, 120
• Ratio: 3-1000:1
• Nominal input speed (rpm): 2500-4000
• Max. input speed (rpm): 5000-6000
• Backlash (arcmin): 6-8 single stage, 8-10 two stages, 12 three stages
• Noise level (dBA/1m): 60-65
• Enclosure: IP54 (output shaft IP65)
• Lubricant: lifetime synthetic lubricant

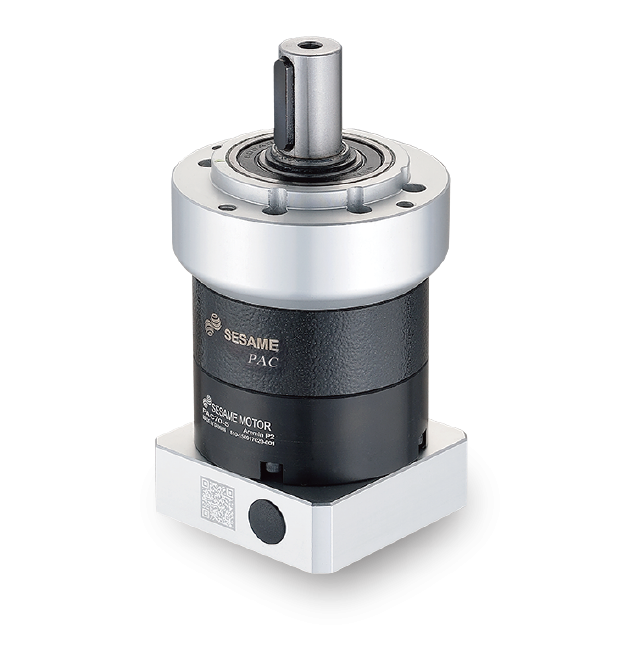

PAC Series

The PAC Standard Series round mounting flange, caged standard class planetary gears, in an inline housing through sizes to 120 mm. Offers an  economic alternative of torque capacity, quiet operation with backlash as low as <6 arcmin. for general speed reduce applications.

Features

• Inline Configuration
• Output shaft, 12 mm through 32 mm diameter.
• Torque Capacity Range: 8 Nm through 260 Nm.
• Caged Planet Carrier: with standard planet gear set
• High performance, efficiencies and low acoustics.
• Wide Range of Ratios: 6 single stage, 12 two stage ratios.
• Output Bearings deliver radial load capacity as high as 4200 N, and axial capacities up to 2600 N.
• Square Servo and Step Motor input: accommodates 40 mm through 130 mm, with optional sizes available.

Specs

• Frame size (mm): 50, 70, 90, 120
• Ratio: 3-100:1
• Nominal input speed (rpm): 2500-4000
• Max. input speed (rpm): 5000-8000
• Backlash (arcmin): 6-9 single stage, 8-12 two stages
• Noise level (dBA/1m): 61-67
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

PAE Series

The PAE Standard Series square mounting flange, caged standard class planetary gears, in an inline housing through sizes to 115 mm. Offers a economic alternative of torque capacity, quiet operation with backlash as low as <6 arcmin. for general speed reduce applications.

Features

• Inline Configuration
• Output shaft, 13 mm through 32 mm diameter.
• Torque Capacity Range: 8 Nm through 260 Nm.
• Caged Planet Carrier: with standard planet gear set
• High performance, efficiencies and low acoustics.
• Wide Range of Ratios: 6 single stage, 12 two stage ratios.
• Output Bearings deliver radial load capacity as high as 4200 N, and axial capacities up to 2600 N.
• Square Servo and Step Motor input: accommodates 40 mm through 130 mm, with optional sizes available.

Specs

• Frame size (mm): 42, 60, 90, 115
• Ratio: 3-100:1
• Nominal input speed (rpm): 2500-4000
• Max. input speed (rpm): 5000-8000
• Backlash (arcmin): 6-9 single stage, 8-12 two stages
• Noise level (dBA/1m): 61-67
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

PAN (NEMA) Series

The PAN Standard Series gearboxes are equipped with a NEMA output flange with metric shaft, to offer exceptional torque ratings and capacity for many of present servo and stepper motion control applications. The gearboxes are drop-ins for most industry standards and available from single to three stages with ratios 3:1 up to 1000:1, the best backlash of <6 arc-minutes. Adapters for all servo and stepper motors.

Features

• NEMA spec motor bracket
• Torque capacity range: 8 Nm through 215 Nm.
• Caged planet carrier: with standard planet gear set
• High performance, efficiencies and low acoustics.
• Wide range of ratios up to 1000:1.
• Output bearings deliver radial load capacity as high as 4760 N, and axial capacities up to 2630 N.

Specs

• Frame size (NEMA): 17, 23, 34, 42, 56
• Ratio: 3-1000:1
• Nominal input speed (rpm): 2500-4000
• Max. input speed (rpm): 5000-6000
• Backlash (arcmin): 6-9 single stage, 8-12 two stages, 12-15 three stages
• Noise level (dBA/1m): 60-67
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

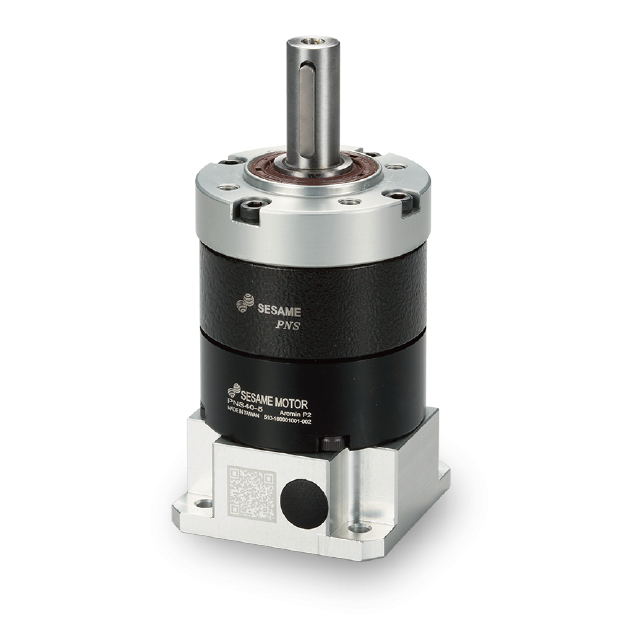

PNS Series

The PNS Standard Series round mounting flange, caged standard class planetary gears in an inline housing through sizes 160. High torque capacity, quiet operation with backlash levels as low as <5 arcmin. Maximum ratio 1000:1. Right angle model (PNSR) is available with frame size up to 120 mm.

Features

• Inline Configuration
• Output shaft, 10 mm through 40 mm diameter
• Torque Capacity Range: 8 Nm through 490 Nm
• Caged Planet Carrier: with standard planet gear set
• High performance, efficiencies and low acoustics
• Wide Range of Ratios: 6 single stage, 10 two-stage and up to 9 three-stage ratios
• Output Bearings deliver radial load capacity as high as 6720 N, and axial capacities up to 4200 N
• Square Servo and Step Motor input: accommodates 40 mm through 140 mm, with optional sizes available

Specs

• Frame size (mm): 40, 60, 80, 120, 160
• Ratio: 3-1000:1
• Nominal input speed (rpm): 2500-4000
• Max. input speed (rpm): 4000-6000
• Backlash (arcmin): 5-9 single stage, 7-12 two stages, 10-15 three stages
• Noise level (dBA/1m): 60-68
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

PGS Series

PGS inline planetary gearheads are cost effective, compact and rigid gearboxes with standard backlash and maintenance-free operation in gantry robotics and packaging machineries. Series frame size 42 to 115 mm in square flange and round housing, ratios from 3:1 to 100:1. Low noise and low temperature rise, synthetic lubricant and high efficiency power transmission to provide solid performance. Compatible with servo motors, stepping motors and brushless DC motors.

Features

• Torque Capacity Range: 8 Nm through 260 Nm
• Alloy steel precision gears, low backlash, low noise, high wear resistance
• Output bearings deliver radial load capacity as high as 4600 N
• Lubricated for life and IP65 sealing, maintenance free
• Adapters for all servo motors

Specs

• Frame size (mm): 42, 60, 90, 115
• Ratio: 3-100:1
• Nominal input speed (rpm): 2500-4000
• Max. input speed (rpm): 5000-8000
• Backlash (arcmin): 6-9 single stage, 8-12 two stages
• Noise level (dBA/1m): 61-67
• Enclosure: IP65
• Lubricant: service life synthetic lubricant
