What Is a Servo Motor? A Complete Guide to Principles, Structure, Types, and Applications

In today's industrial and automation sectors, precision control and high-efficiency operation are more important than ever. Servo motors, especially when paired with planetary gear reducers (gearboxes), enable stable and efficient power transmission. With their ability to accurately control motion based on commands, servo motors are essential for precision machinery across various industries. This article offers a comprehensive guide to servo motors—covering their working principles, structural components, different types, and diverse application areas—to help you better understand this critical technology.

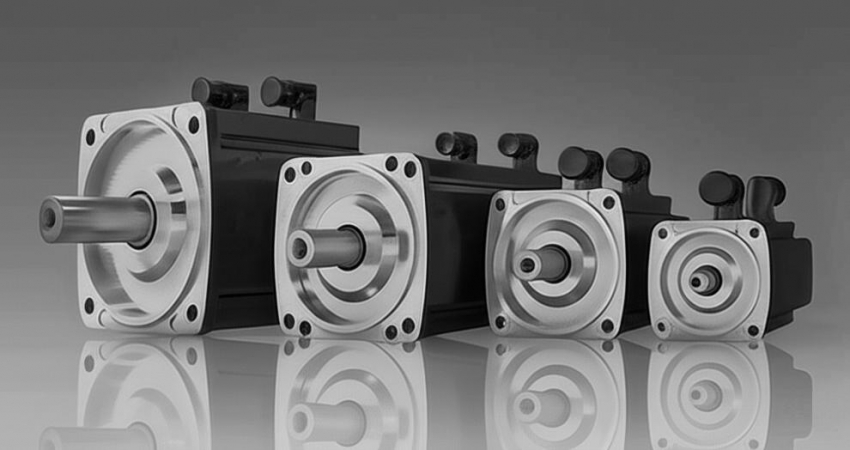

What Is a Servo Motor?

A servo motor is a high-precision, high-response electric motor capable of accurately controlling speed, position, and torque based on external commands. A typical servo system includes the motor itself, a controller (servo driver), and a feedback device such as an encoder or resolver. These components work together to maintain high accuracy and system stability through continuous feedback adjustment. Servo motors are widely used in industrial automation, electronics manufacturing, aerospace systems, and medical equipment.
〈Read more：Choosing Motor Basics: Types of AC Motors & DC Motors〉


How Servo Motors Work

Servo motors operate similarly to conventional AC motors by using an AC input to generate a magnetic field and drive rotor rotation. When a controller sends a command, the servo driver adjusts the output current to drive the motor accordingly. At the same time, the encoder provides real-time feedback on the motor's speed and position, allowing the controller to compare and correct the output. This closed-loop feedback system ensures rapid response and consistent stability.
〈Read more：How Does an Induction Motor Work? Types and Uses〉

Main Components of a Servo Motor

• Motor Body: Responsible for mechanical output, typically using a brushless DC or AC motor.
• Encoder: Tracks speed and position and provides feedback signals to the controller.
• Controller: Interprets feedback and adjusts the motor operation to achieve precise control.
• Driver: Interfaces between the control system and motor, regulating voltage and current output.

Types of Servo Motors

Servo motors are categorized by power source and motion characteristics:

1. DC Servo Motor

Powered by a direct current source, this motor uses an encoder and tachogenerator to detect rotational speed and torque. DC servo motors offer high accuracy and rapid response, making them ideal for:

• Robots
• Drones
• AGVs (Automated Guided Vehicles)
• AMRs (Autonomous Mobile Robots)
• Medical devices

2. AC Servo Motor

Using alternating current, these motors control movement through variable voltage and frequency. AC servo motors are the most common choice for:

• Industrial automation
• CNC machinery
• Robotics
• Precision manufacturing

They are highly durable and low-maintenance, with stable high-speed performance and high torque output.

3. Linear Servo Motor

Unlike traditional motors, linear servo motors provide direct linear motion through electromagnetic force without the need for mechanical conversion. They are fast, highly dynamic, and suited for:

• Semiconductor manufacturing
• Laser cutting machines
• High-speed CNC positioning platforms
• Medical diagnostics equipment

Comparative Table: Types of Servo Motors

Type	Motion	Control Method	Dynamics & Response	Common Applications
DC Servo Motor	Rotational	Voltage + Feedback	Quick start, better at low speed	Simple automation, robotics, small devices
AC Servo Motor	Rotational	Voltage & current + Encoder	Stable at high speed, high torque	Industrial machinery, automation lines
Linear Servo Motor	Linear	Direct drive + Feedback	Ultra-fast, high-precision	Semiconductor, laser machining, CNC systems



Key Advantages of Servo Motors

1. High Precision Control
Servo systems use high-resolution encoders and closed-loop control to achieve micrometer-level positioning accuracy, perfect for CNC machining, robotic arms, and assembly lines.
2. Fast Dynamic Response
With low internal inertia and high control bandwidth, servo motors deliver millisecond-level responsiveness, ideal for fast-paced automation tasks like labeling, packaging, and material handling.
3. High Stability
Thanks to real-time feedback and modern servo drives with vibration suppression, servo motors maintain consistent performance under variable loads and extended use.
4. Superior Energy Efficiency
Servo motors adapt power output based on actual load, significantly reducing energy waste. Lightweight designs and reduced internal friction further improve efficiency.
5. Low Noise Operation
Especially in PMSM (Permanent Magnet Synchronous Motors), servo motors offer quiet, high-efficiency performance—ideal for sensitive environments like healthcare and consumer appliances.


Common Applications of Servo Motors

Industrial Automation

Used in CNC machines, robotic arms, and production lines, often paired with planetary gearboxes for enhanced torque and control precision.

Semiconductor & Electronics

Enables micron-level positioning in wafer handling, IC packaging, SMT placement, and optical alignment.

Aerospace

Used in UAVs, satellite mechanisms, radar platforms, and attitude control systems for their precision and vibration resistance.

Medical Devices

Found in surgical robots, X-ray systems, MRI beds, and automated diagnostics, ensuring accuracy, safety, and comfort.

Logistics & Transport

Servo motors power AGVs, AMRs, and automated sorting and conveying systems, providing precise movement and smart obstacle avoidance.

Other Applications

Also used in camera gimbals, automatic window shades, coffee machines, entertainment robotics, and simulators.


Choosing the Right Servo Motor: Key Factors

1. Load and Torque Requirements: Know your load type and calculate torque needs.
2. Motion and Speed Demands: Ensure the motor matches acceleration/deceleration and trajectory expectations.
3. Control System and Feedback: Match encoder resolution and control mode to precision requirements.
4. Environmental Conditions: Consider noise, temperature, and protection level (e.g., IP65).
5. Brand Support and Service: Select a reputable manufacturer offering strong technical support.

Featured Solution: Sesame Motor – Gearbox Expertise

Sesame Motor specializes in designing planetary gear reducers (gearboxes) that complement servo motors for seamless power transmission. Our gearboxes minimize backlash and noise while maximizing torque and lifespan. With flexible mounting for all major servo brands, Sesame delivers efficient and reliable motion solutions for high-demand applications.


Conclusion

Servo motors are pivotal to modern automation, offering unmatched precision, responsiveness, and energy efficiency. When paired with planetary gearboxes, they become even more powerful—ideal for high-load, high-accuracy systems. Thoughtful selection based on control requirements, environment, and application ensures peak performance and long-term reliability. For more information or tailored advice, contact us or fill out our online inquiry form.
