Separated Type (SS Series)

ADD TO INQUIRY(0)

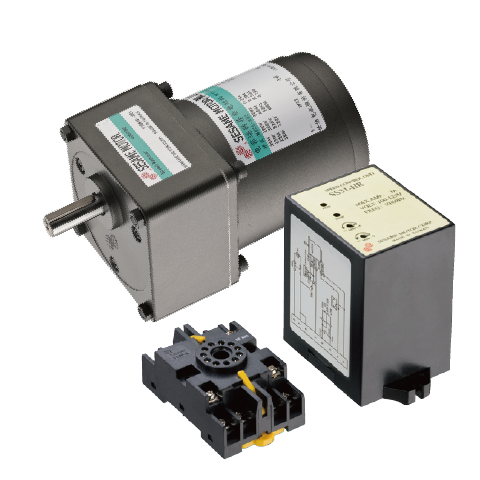

Output 6W-40W
Output 60W-90W

Output 6W-40W

Easy wiring and speed control.
Induction and reversible motor equipped with generator, various wiring methods and control types available.
Built-in electronic brake circuits for instant braking.
Wide range of variable speed.
Output 6W-90W
To work with speed reducer is available (motor with pinion shaft, GN or GX model)

Separated Type Speed Controlled Motors & Gear Motors Specifications

6W (1/125 HP) Motors

6W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	Max. Torque (kg.cm)
6W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	1200rpm	90rpm
Continuous	2IK6RA-A	Continuous	6	100/110	50/60	4	0.22/0.21	90~1400/90~1700	0.7/0.63	0.4/0.55	0.72/0.5
	2IK6RA-C			200/220	50/60		0.1/0.1	90~1400/90~1700	0.65/0.7	0.44/0.66	0.6/0.7
	2IK6RA-CE			230/240	50		0.11/0.1	90~1400	0.74/0.77	0.39/0.52	0.72/0.8
Reversible	2RK6RA-A	30	6	100/110	50/60	4	0.24/0.25	90~1400/90~1700	0.72/0.7	0.3/0.49	0.6/0.52
	2RK6RA-C			200/220	50/60		0.13/0.15	90~1400/90~1700	0.72/0.8	0.26/0.52	0.67/0.7
	2RK6RA-CE			230/240	50		0.14/0.14	90~1400	0.95/0.94	0.36/0.31	0.8/0.8

6W (1/125 HP) Gear Motors

6W Model

Gearhead
Model

Rated Time
(min.)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current
(A)

Variable Speed
Range (rpm)

Starting Torque
(kg.cm)

Max. Torque (kg.cm)

1200rpm

90rpm

Continuous

2IK6RGN-A

2GN□KE

Continuous

100/110

50/60

0.22/0.21

90~1400/90~1700

0.7/0.63

0.4/0.55

0.72/0.5

2IK6RGN-C

200/220

50/60

0.1/0.1

90~1400/90~1700

0.65/0.7

0.44/0.66

0.6/0.7

2IK6RGN-CE

230/240

0.11/0.1

90~1400

0.74/0.77

0.39/0.52

0.72/0.8

Reversible

2RK6RGN-A

100/110

50/60

0.24/0.25

90~1400/90~1700

0.72/0.7

0.3/0.49

0.6/0.52

2RK6RGN-C

200/220

50/60

0.13/0.15

90~1400/90~1700

0.72/0.8

0.26/0.52

0.67/0.7

2RK6RGN-CE

230/240

0.14/0.14

90~1400

0.95/0.94

0.36/0.31

0.8/0.8

□=Ratio 1-180
2IK6RA & 2RK6RA - Round Shaft Dim. (PDF)
2IK6RGN & 2RK6RGN - Pinion Shaft (Helical Gear) Dim. (PDF)
Gearhead 2GN□KE Dim. (PDF)
Decimal Gearhead 2GN10X(K) Dim. (PDF)

15W (1/50 HP) Motors

15W Model		Rated Time (min)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	Max. Torque (kg.cm)
15W Model		Rated Time (min)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	1200rpm	90rpm
Continuous	3IK15RA-A	Continuous	15	100/110	50/60	4	0.36/0.35	90~1400/90~1700	0.89/1.04	0.9/1.5	1.0/1.1
	3IK15RA-C			200/220	50/60		0.18/0.18	90~1400/90~1700	0.75/1.1	1.1/1.5	1.0/1.1
	3IK15RA-CE			230/240	50		0.17/0.17	90~1400	1.06/1.06	1.40/1.32	1.02/1.25
Reversible	3RK15RA-A	30	15	100/110	50/60	4	0.37/0.44	90~1400/90~1700	1.17/1.24	0.1/1.2	0.9/0.85
	3RK15RA-C			200/220	50/60		0.2/0.23	90~1400/90~1700	0.96/1.34	1.4/1.2	0.9/0.85
	3RK15RA-CE			230/240	50		0.19/0.21	90~1400	1.36/1.31	1.52/1.4	1.2/1.15

15W (1/50 HP) Gear Motors

15W Model

Gearhead
Model

Rated Time
(min)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current
(A)

Variable Speed
Range (rpm)

Starting Torque
(kg.cm)

Max. Torque (kg.cm)

1200rpm

90rpm

Continuous

3IK15RGN-A

3GN□KE

Continuous

100/110

50/60

0.36/0.35

90~1400/90~1700

0.89/1.04

0.9/1.5

1.0/1.1

3IK15RGN-C

200/220

50/60

0.18/0.18

90~1400/90~1700

0.75/1.1

1.1/1.5

1.0/1.1

3IK15RGN-CE

230/240

0.17/0.17

90~1400

1.06/1.06

1.40/1.32

1.02/1.25

Reversible

3RK15RGN-A

100/110

50/60

0.37/0.44

90~1400/90~1700

1.17/1.24

0.1/1.2

0.9/0.85

3RK15RGN-C

200/220

50/60

0.2/0.23

90~1400/90~1700

0.96/1.34

1.4/1.2

0.9/0.85

3RK15RGN-CE

230/240

0.19/0.21

90~1400

1.36/1.31

1.52/1.4

1.2/1.15

□=Ratio 1-180
3IK15RA & 3RK15RA - Round Shaft Dim. (PDF)
3IK15RGN & 3RK15RGN - Pinion Shaft (Helical Gear) Dim. (PDF)
Gearhead 3GN□KE Dim. (PDF)
Decimal Gearhead 3GN10X(K) Dim. (PDF)

25W (1/30 HP) Motors

25W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Troque (kg.cm)	Max. Torque (kg.cm)
25W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Troque (kg.cm)	1200rpm	90rpm
Continuous	4IK25RA-A	Continuous	25	100/110	50/60	4	0.57/0.45	90~1400/90~1700	1.4/1.4	2.17/2.5	1.4/1.4
	4IK25RA-C			200/220	50/60		0.28/0.25	90~1400/90~1700	1.57/1.38	2.1/2.4	1.6/1.3
	4IK25RA-CE			230/240	50		0.25/0.24	90~1400	1.38/1.55	2.2/2.4	1.5/1.7
Reversible	4RK25RA-A	30	25	100/110	50/60	4	0.56/0.51	90~1400/90~1700	1.65/1.92	2.2/2.9	1.5/1.9
	4RK25RA-C			200/220	50/60		0.29/0.3	90~1400/90~1700	1.98/1.94	2.4/2.6	1.9/1.8
	4RK25RA-CE			230/240	50		0.25/0.25	90~1400	2.22/2.19	2.7/2.9	2.24/2.3

25W (1/30 HP) Gear Motors

25W Model

Gearhead
Model

Rated Time
(min.)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current
(A)

Variable Speed
Range (rpm)

Starting Troque
(kg.cm)

Max. Torque (kg.cm)

1200rpm

90rpm

Continuous

4IK25RGN-A

4GN□KE

Continuous

100/110

50/60

0.57/0.45

90~1400/90~1700

1.4/1.4

2.17/2.5

1.4/1.4

4IK25RGN-C

200/220

50/60

0.28/0.25

90~1400/90~1700

1.57/1.38

2.1/2.4

1.6/1.3

4IK25RGN-CE

230/240

0.25/0.24

90~1400

1.38/1.55

2.2/2.4

1.5/1.7

Reversible

4RK25RGN-A

100/110

50/60

0.56/0.51

90~1400/90~1700

1.65/1.92

2.2/2.9

1.5/1.9

4RK25RGN-C

200/220

50/60

0.29/0.3

90~1400/90~1700

1.98/1.94

2.4/2.6

1.9/1.8

4RK25RGN-CE

230/240

0.25/0.25

90~1400

2.22/2.19

2.7/2.9

2.24/2.3

□=Ratio 1-180
4IK25RA & 4RK25RA - Round Shaft Dim. (PDF)
4IK25RGN & 4RK25RGN - Pinion Shaft (Helical Gear) Dim. (PDF)
Gearhead 4GN□KE Dim. (PDF)
Decimal Gearhead 4GN10X(K) Dim. (PDF)

40W (1/19 HP) Motors

40W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	Max. Torque (kg.cm)
40W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	1200rpm	90rpm
Continuous	5IK40RA-A	Continuous	40	100/110	50/60	4	0.87/0.76	90~1400/90~1700	2.14/2.66	3.18/4.2	2.2/2.8
	5IK40RA-C			200/220	50/60		0.4/0.34	90~1400/90~1700	1.75/2.17	3.6/4.2	1.8/2.1
	5IK40-RA-CE			230/240	50		0.32/0.32	90~1400	2.3/2.58	4.4/4.6	2.4/2.6
Reversible	5RK40RA-A	30	40	100/110	50/60	4	0.99/1.01	90~1400/90~1700	2.43/3.1	2.8/3.4	1.9/2.4
	5RK40RA-C			200/220	50/60		0.54/0.53	90~1400/90~1700	3.76/2.37	3/3.4	3/2.2
	5RK40RA-C			230/240	50		0.49/0.44	90~1400	2.41/3.17	3/3.9	2/2.6

40W (1/19 HP) Gear Motors

40W Model

Gearhead
Model

Rated Time
(min.)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current
(A)

Variable Speed
Range (rpm)

Starting Torque
(kg.cm)

Max. Torque (kg.cm)

1200rpm

90rpm

Continuous

5IK40RGN-A

5GN□KE

Continuous

100/110

50/60

0.87/0.76

90~1400/90~1700

2.14/2.66

3.18/4.2

2.2/2.8

5IK40RGN-C

200/220

50/60

0.4/0.34

90~1400/90~1700

1.75/2.17

3.6/4.2

1.8/2.1

5IK40-RGN-CE

230/240

0.32/0.32

90~1400

2.3/2.58

4.4/4.6

2.4/2.6

Reversible

5RK40RGN-A

100/110

50/60

0.99/1.01

90~1400/90~1700

2.43/3.1

2.8/3.4

1.9/2.4

5RK40RGN-C

200/220

50/60

0.54/0.53

90~1400/90~1700

3.76/2.37

3/3.4

3/2.2

5RK40RGN-C

230/240

0.49/0.44

90~1400

2.41/3.17

3/3.9

2/2.6

□=Ratio 1-180
5IK40RA & 5RK40RGA - Round Shaft Dim. (PDF)
5RK40RGN & 5RK40RGN - Pinion Shaft (Helical Gear) Dim. (PDF)
Gearhead 5GN□KE Dim. (PDF)
Decimal Gearhead 5GN10X(K) Dim. (PDF)

Online Gearbox Selection Tool

Specification Download

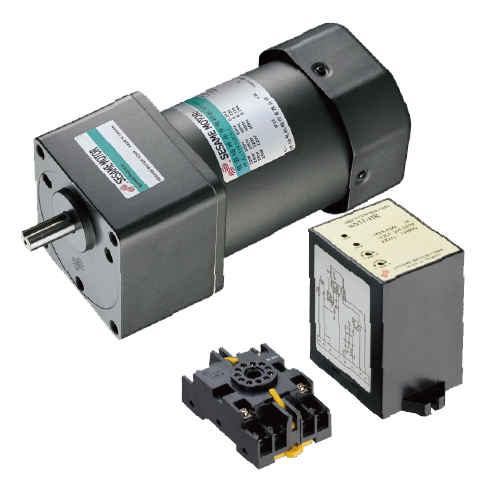

Output 60W-90W

Easy wiring and speed control.
Circuits, capacitor and variable resistor are assembled in controller, which is attached to motor via extended cable.
Ready-to-use once power is supplied.
Output 6W-90W
To work with speed reducer is available (motor with pinion shaft, GN or GX model)

Speed-Torque Curve

Separated Type Speed Controlled Motors & Gear Motors Specifications

60W (1/12 HP) Motors

60W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	Max. Torque (kg.cm)
60W Model		Rated Time (min.)	Output (W)	Voltage (V)	Freq. (Hz)	Pole (P)	Rated Current (A)	Variable Speed Range (rpm)	Starting Torque (kg.cm)	1200rpm	90rpm
Continuous	5IK60RA-AF	Continuous	60	100/110	50/60	4	1.8/1.12	90~1400/90~1700	2.6/2.94	5.6/6.9	3.5/4.0
	5IK60RA-CF			200/220	50/60		0.64/0.54	90~1400/90~1700	3.62/4.41	5.6/6.9	4.6/4.4
	5IK60RA-CEF			230/240	50		0.56/0.55	90~1400	4.14/5.22	6.17/7.2	4.37/5.2
Reversible	5RK60RA-AF	30	60	100/110	50/60	4	1.34/1.25	90~1400/90~1700	3.08/4.03	4.6/5.6	3.2/3.3
	5RK60RA-CF			200/220	50/60		0.75/0.73	90~1400/90~1700	2.38/2.97	5.5/5.8	2.3/2.5
	5RK60RA-CEF			230/240	50		0.57/0.63	90~1400	4.33/4.72	6.02/5.6	4.73/4.1

60W (1/12 HP) Gear Motors

60W Model

Gearhead
Model

Rated Time
(min.)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current (A)

Variable Speed Range (rpm)

Starting Torque
(kg.cm)

Max. Torque (kg.cm)

1200rpm

90rpm

Continuous

5IK60RGN-AF
5IK60RGX-AF

5GN□KE
5GX□K
5GX□KB

Continuous

100/110

50/60

1.8/1.12

90~1400/90~1700

2.6/2.94

5.6/6.9

3.5/4.0

5IK60RGN-CF
5IK60RGX-CF

200/220

50/60

0.64/0.54

90~1400/90~1700

3.62/4.41

5.6/6.9

4.6/4.4

5IK60RGN-CEF
5IK60RGX-CEF

230/240

0.56/0.55

90~1400

4.14/5.22

6.17/7.2

4.37/5.2

Reversible

5RK60RGN-AF
5RK60RGX-AF

100/110

50/60

1.34/1.25

90~1400/90~1700

3.08/4.03

4.6/5.6

3.2/3.3

5RK60RGN-CF
5RK60RGX-CF

200/220

50/60

0.75/0.73

90~1400/90~1700

2.38/2.97

5.5/5.8

2.3/2.5

5RK60RGN-CEF
5RK60RGX-CEF

230/240

0.57/0.63

90~1400

4.33/4.72

6.02/5.6

4.73/4.1

□=Ratio 1-180
5IK60RA & 5RK60RA - Round Shaft Dim. (PDF) (DWG) (STEP)
5IK60RGN & 5RK60RGN - (Helical Gear) Dim. (PDF)  (DWG)  (STEP)
5IK60RGX & 5RK60RGX- (Helical Gear) Dim. (PDF)  (DWG)  (STEP)
Gearhead 5GN□KE Dim. (PDF)  (DWG)  (STEP, 5GN3-18) (STEP, 5GN20-180)
Gearhead 5GX□K Dim. (PDF)  (DWG)  (STEP)
Gearhead 5GX□KB Dim. (PDF)  (DWG)  (STEP)
Decimal Gearhead 5GN10X(K) Dim. (PDF) (DWG) (STEP)
Decimal Gearhead 5GX10XK Dim. (PDF) (DWG) (STEP)

90W (1/8 HP) Motors

90W Model

Gearhead
Model

Rated Time
(min.)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current
(A)

Variable Speed Range (rpm)

Starting Torque
(kg.cm)

Max. Torque (kg.cm)

Capacitor

1200rpm

90rpm

Capacity
(μF)

Withstand
Voltage
(VAC)

Continuous

5IK90RA-AF

5GX□K
5GX□KB

Continuous

100/110

50/60

1.5/1.41

90~1400/90~1700

4.76/5.86

8.4/10.2

5/6.1

250

5IK90RA-CF

200/220

50/60

0.76/0.72

90~1400/90~1700

4.3/4.21

8/8.7

4.4/4.4

450

5IK90RA-CEF

230/240

0.66/0.68

90~1400

4.93/5.08

9.8/10.2

5.2/5.6

450

90W (1/8 HP) Gear Motors

90W Model

Gearhead
Model

Rated Time
(min.)

Output
(W)

Voltage
(V)

Freq.
(Hz)

Pole
(P)

Rated Current
(A)

Variable Speed Range (rpm)

Starting Torque
(kg.cm)

Max. Torque (kg.cm)

Capacitor

1200rpm

90rpm

Capacity
(μF)

Withstand
Voltage
(VAC)

Continuous

5IK90RGS-AF
5IK90RGX-AF

5GX□K
5GX□KB

Continuous

100/110

50/60

1.5/1.41

90~1400/90~1700

4.76/5.86

8.4/10.2

5/6.1

250

5IK90RGS-CF
5IK90RGX-CF

200/220

50/60

0.76/0.72

90~1400/90~1700

4.3/4.21

8/8.7

4.4/4.4

450

5IK90RGS-CEF
5IK90RGX-CEF

230/240

0.66/0.68

90~1400

4.93/5.08

9.8/10.2

5.2/5.6

450

□=Ratio 1-180
5IK90RA - Round Shaft Dim. (PDF)
5IK90RGS - (Spur Gear) Dim. (GS, Clutch Brake) (PDF) (DWG) (STEP)
5IK90RGX - (Helical Gear) Dim. (GX Gearhead) (PDF)
Gearhead 5GX□K Dim. (PDF)
Gearhead 5GX□KB Dim. (PDF)
Decimal Gearhead 5GX10XK Dim. (PDF)

Online Gearbox Selection Tool

Specification Download
