Precision Advanced Type

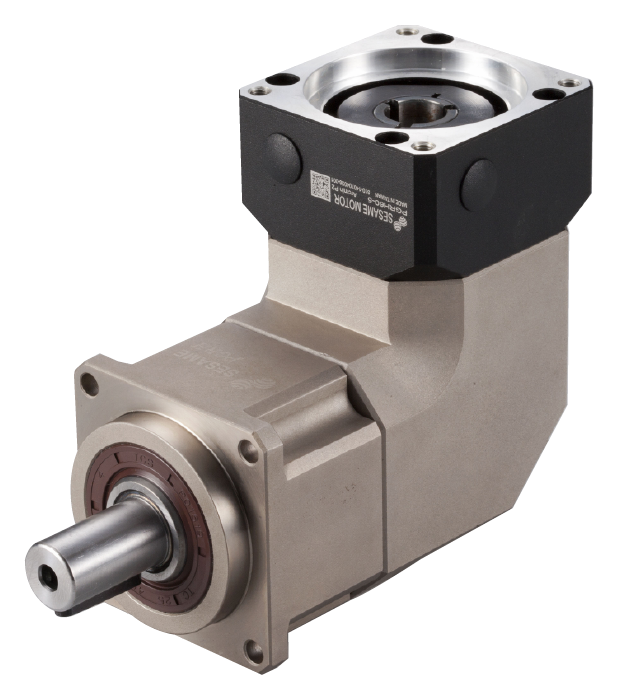

PGRH Series
The PGRH Precision Series right-angle housing, square mounting flange, with caged precision class helical planetary gears, in sizes through 220 mm. High torque capacity, quiet operation and backlash as low as <2 arcmin. The square output flange makes it particularly easy to install and save spaces for a wide range of applications. PGRH series gearhead overall design suitable for combination operation with servo motor high-speed input and achieves maximum torque output. Precision gear design and gear processing create a planetary gearhead with low backlash operation, high efficiency, low noise and long service life performances.

Specs:
• Frame size (mm): 42, 60, 90, 115, 142, 180, 220
• Ratio: 3-200:1
• Nominal input speed (rpm): 2000-5000
• Max. input speed (rpm): 4000-10000
• Backlash (arcmin): 2-7 single stage, 4-9 two stages
• Noise level (dBA/1m): 62-74
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

Features:
• 3 levels of backlash, 7 frame sizes from 42-220 mm
• Premium and precision gear design, ratios from 3-200:1
• One-piece planet carrier/output shaft, high rigidity and radial load capacity
• Hardened and ground gearing, high wear resistance and impact toughness
• One-piece ring gear/housing, high precision and torque output
• Planets with full needle bearing support
• IP65 enclosure and synthetic lubricant, maintenance-free service life

►►Spec. Download
►►Online Gearbox Selection Tool

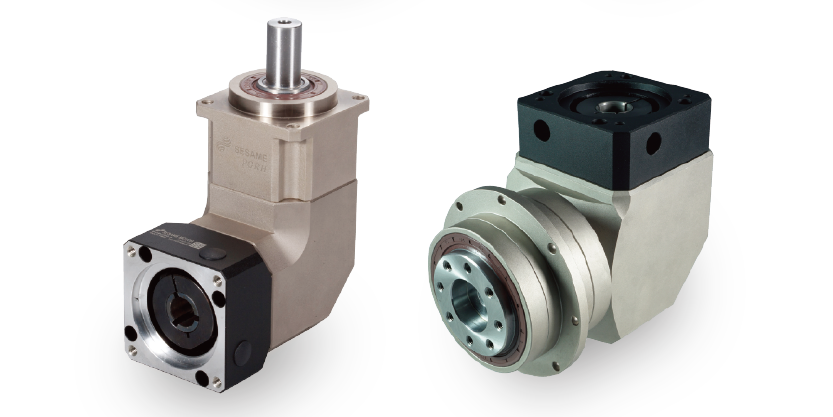

PGFR Series, Rotary Flange Right Angle Planetary Gearboxes
The PGFR series of flange type right angle helical gearbox provide a wide range of performance levels to high positioning accuracy and motion control applications, particularly when high precision and high torsional rigidity are required. Frame sizes 42-142 mm with the best level of backlash ≦ 2 arcmin. Nominal input speed up to 10000 rpm. The PGFR is specially well suited to work with pinion and rack for linear operation. Commonly adapted in metal cutting machines, wood processing equipment, machine centers and highly dynamic motion control systems. Inline configuration (PGF series) is also available with max. frame size 142 mm.

Specs:
• Frame size (mm): 42, 60, 90, 115, 142
• Ratio: 3-200:1
• Nominal input speed (rpm): 3000-5000
• Max. input speed (rpm): 5000-10000
• Backlash (arcmin): 2-8 single stage, 4-10 two stages
• Noise level (dBA/1m): 62-70
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

Features:
• 3 levels of backlash, 5 frame sizes available from 42-142 mm
• Premium and precision gear design, ratios from 3-200:1
• One-piece planet carrier/output shaft, high rigidity and radial load capacity
• Hardened and ground gearing, high wear resistance and impact toughness
• One-piece ring gear/housing, high precision and torque output
• Planets with full needle bearing support
• IP65 enclosure and synthetic lubricant, maintenance-free service life

►►Spec. Download
►►Online Gearbox Selection Tool

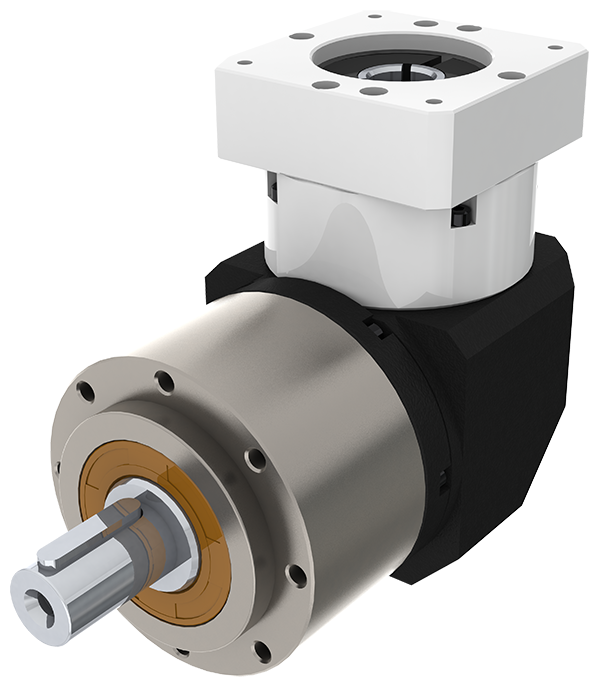

PGCHR Series
Sesame Motor PGCHR right angle planetary gearheads provide integration between superior operating performance and cost effectiveness. One-piece planet carrier/output shaft and newly designed gear profile benefit higher output torque, precision, loading capacity and lower noise level. High quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation. The highest ratio 300:1 is available with max frame size 120 mm. Adapters customized for all servo motors.

Specs:
• Frame size (mm): 50, 70, 90, 120
• Ratio: 3-300:1
• Nominal input speed (rpm): 3600-4500
• Max. input speed (rpm): 6000-7500
• Backlash (arcmin): 8-10 single stage, 10-12 two stages
• Noise level (dBA/1m): 62-68
• Enclosure: IP65
• Lubricant: service life synthetic lubricant

Features:
• One-piece planet carrier/output shaft, high torsional rigidity and loading capacity
• One-piece compact ring gear design, high precision and output torque
• Alloy steel precision gears, low backlash, low noise, high wear resistance
• Lubricated for life and IP65 sealing, maintenance free
• Adapters for all servo motors

►►Spec. Download
►►Online Gearbox Selection Tool
