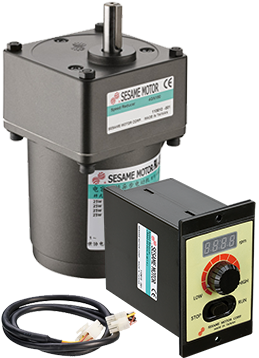

Speed Control Motor - Assembled Type (US Series)

  • Easy wiring and speed control.

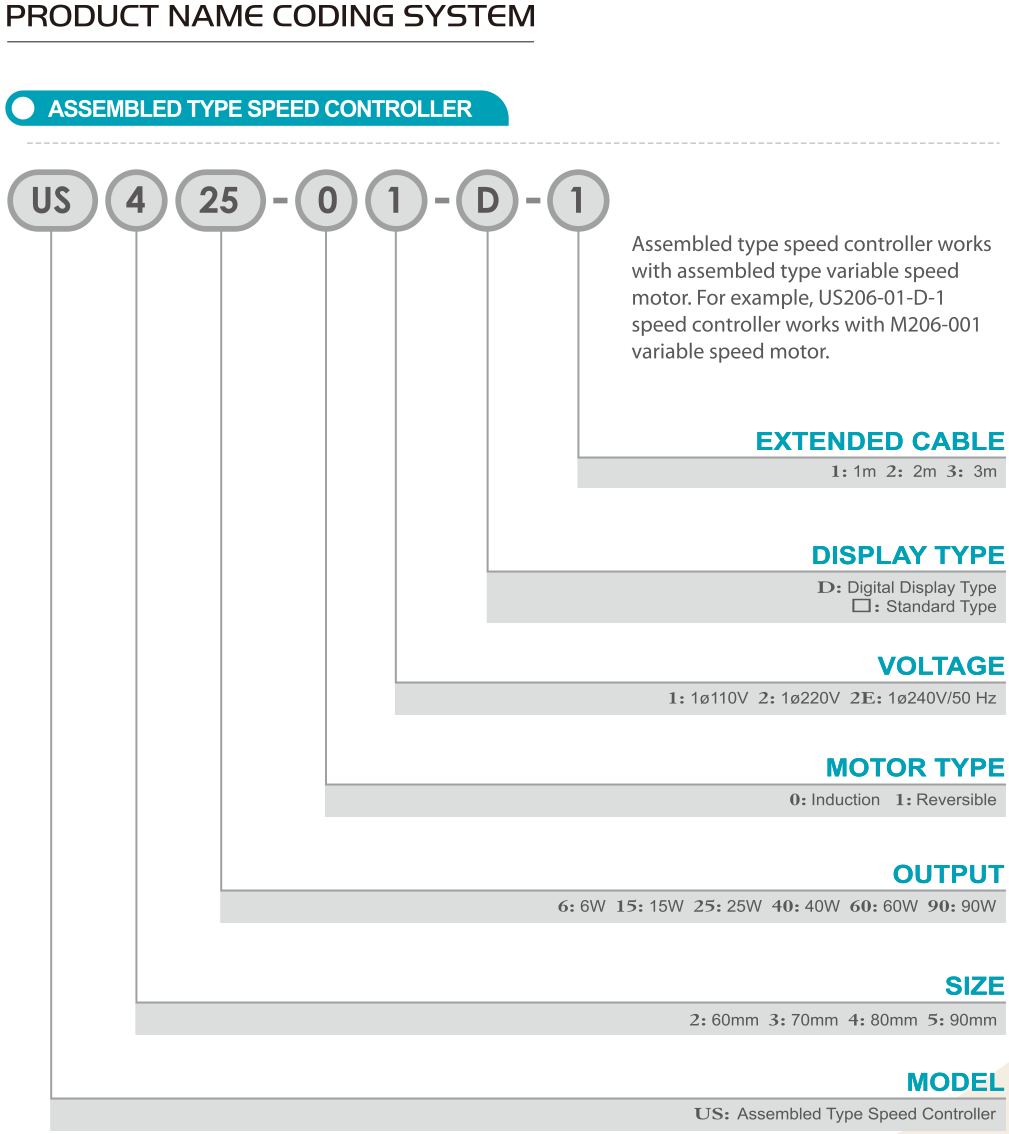

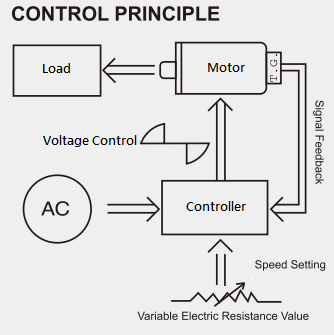

  • Circuits, capacitor and variable resistor are assembled in controller, which is attached to motor via extended cable.
  • Ready-to-use once power is supplied.
  • Output 6W-90W
  • To work with speed reducer is available (motor with pinion shaft, GN or GX model)



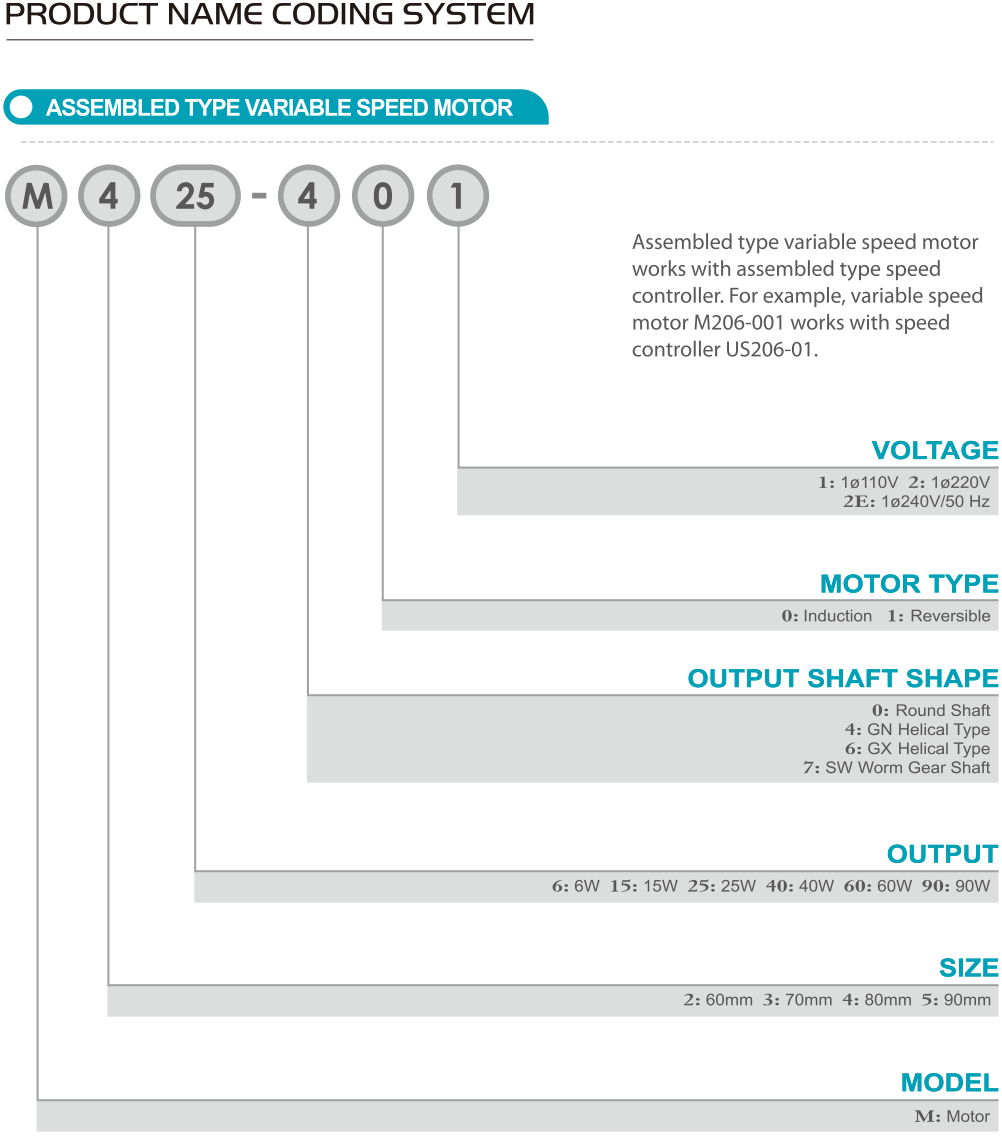

Assembled Type Speed Control Motor Specification

6W
Model Rated
Time

(min)
Rated
Output

(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)

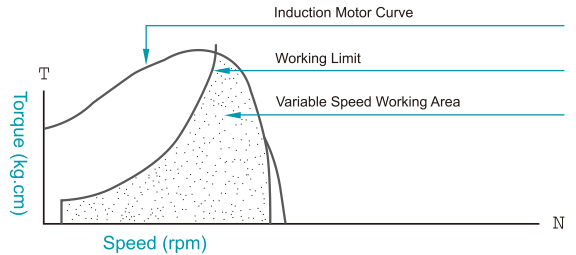

Adjustable Range
(rpm)
Starting
Torque

(kg.cm)
Max. Torque/
Pre-set RPM

(kg.cm)
1200rpm 90rpm
Induction M206-(0/4)01 Continuous 6 100/110 50/60 4 0.22/0.21 90~1400/90~1700 0.7/0.63 0.4/0.55 0.72/0.5
M206-(0/4)02 200/220 50/60 0.1/0.1 90~1400/90~1700 0.65/0.7 0.44/0.66 0.6/0.7
M206-(0/4)02E 230/240 50 0.11/0.1 90~1400 0.74/0.77 0.39/0.52 0.72/0.8
Reversible M206-(0/4)11 30 6 100/110 50/60 4 0.24/0.25 90~1400/90~1700 0.72/0.7 0.3/0.49 0.6/0.52
M206-(0/4)12 200/220 50/60 0.13/0.15 90~1400/90~1700 0.72/0.8 0.26/0.52 0.67/0.7
M206-(0/4)12E 230/240 50 0.14/0.14 90~1400 0.95/0.94 0.36/0.31 0.8/0.8
M206-0* - 6W Round Shaft Dim. (PDF)  (DWG)  (STEP)
M206-4* - 6W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

15W
Model Rated
Time

(min)
Rated
Output

(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque

(kg.cm)
Max. Torque/
Pre-set RPM

(kg.cm)
1200rpm 90rpm
Induction M315-(0/4)01 Continuous 15 100/110 50/60 4 0.36/0.35 90~1400/90~1700 0.88/1.04 0.9/1.5 1.0/1.1
M315-(0/4)02 200/220 50/60 0.18/0.18 90~1400/90~1700 0.75/1.1 1.1/1.5 1.0/1.1
M315-(0/4)02E 230/240 50 0.17/0.17 90~1400 1.06/1.06 1.40/1.32 1.02/1.25
Reversible M315-(0/4)11 30 15 100/110 50/60 4 0.37/0.44 90~1400/90~1700 1.17/1.24 0.1/1.2 0.9/0.85
M315-(0/4)12 200/220 50/60 0.2/0.23 90~1400/90~1700 0.96/1.34 1.4/1.2 0.9/0.85
M315-(0/4)12E 230/240 50 0.19/0.21 90~1400 1.36/1.31 1.52/1.4 1.2/1.1
M315-0* - 15W Round Shaft Dim. (PDF)  (DWG)  (STEP)
M315-4* - 15W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

25W
Model Rated
Time

(min)
Rated
Output

(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque

(kg.cm)
Max. Torque/
Pre-set RPM

(kg.cm)
1200rpm 90rpm
Continuous M425-(0/4)01 Continuous 25 100/110 50/60 4 0.57/0.45 90~1400/90~1700 1.4/1.4 2.17/2.5 1.4/1.4
M425-(0/4)02 200/220 50/60 0.28/0.25 90~1400/90~1700 1.57/1.38 2.1/2.4 1.6/1.3
M425-(0/4)02E 230/240 50 0.25/0.24 90~1400 1.38/1.55 2.2/2.4 1.5/1.7
Reversible M425-(0/4)11 30 25 100/110 50/60 4 0.56/0.51 90~1400/90~1700 1.65/1.92 2.2/2.9 1.5/1.9
M425-(0/4)12 200/220 50/60 0.29/0.3 90~1400/90~1700 1.98/1.94 2.4/2.6 1.9/1.8
M425-(0/4)12E 230/240 50 0.25/0.25 90~1400 2.22/2.19 2.7/2.9 2.24/2.3
M425-0* - 25W Round Shaft Dim. (PDF)  (DWG)  (STEP)
M425-4* - 25W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

40W
Model Rated
Time

(min)
Rated
Output

(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque

(kg.cm)
Max. Torque/
Pre-set RPM

(kg.cm)
1200rpm 90rpm
Continuous M540-(0/4)01 Continuous 40 100/110 50/60 4 0.87/0.76 90~1400/90~1700 2.14/2.66 3.18/4.2 2.2/2.8
M540-(0/4)02 200/220 50/60 0.4/0.34 90~1400/90~1700 1.75/2.17 3.6/4.2 1.8/2.1
M540-(0/4)02E 230/240 50 0.32/0.32 90~1400 2.3/2.58 4.4/4.6 2.4/2.6
Reversible M540-(0/4)11 30 40 100/110 50/60 4 0.99/1.01 90~1400/90~1700 2.43/3.1 2.8/3.4 1.9/2.4
M540-(0/4)12 200/220 50/60 0.54/0.53 90~1400/90~1700 3.76/2.37 3/3.4 3/2.2
M540-(0/4)12E 230/240 50 0.49/0.44 90~1400 2.4/3.17 3/3.9 2/2.6
M540-0* - 40W Round Shaft Dim. (PDF)  (DWG)  (STEP)
M540-4* - 40W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

60W (M560-4** with GN pinion shaft for light loading only)
Model Rated
Time

(min)
Rated
Output

(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque

(kg.cm)
Max. Torque/
Pre-set RPM

(kg.cm)
1200rpm 90rpm
Continuous M560-(0/4/6)01 Continuous 60 100/110 50/60 4 1.8/1.12 90~1400/90~1700 2.6/2.94 5.6/6.9 3.5/4.0
M560-(0/4/6)02 200/220 50/60 0.64/0.54 90~1400/90~1700 3.62/4.41 5.6/6.9 4.6/4.4
M560-(0/4/6)02E 230/240 50 0.56/0.55 90~1400 4.14/5.22 6.17/7.2 4.37/5.2
Reversible M560-(0/4/6)11 30 60 100/110 50/60 4 1.8/1.12 90~1400/90~1700 3.08/4.03 4.6/5.6 3.2/3.3
M560-(0/4/6)12 200/220 50/60 0.75/0.73 90~1400/90~1700 2.38/2.97 5.5/5.8 2.3/2.5
M560-(0/4/6)12E 230/240 50 0.57/0.63 90~1400 4.33/4.72 6.02/5.6 4.73/4.1
M560-0* - 60W Round Shaft Dim. (PDF)  (DWG)  (STEP)
M560-4* - 60W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)
M560-6* - 60W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

90W
Model Rated
Time

(min)
Rated
Output

(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque

(kg.cm)
Max. Torque/
Pre-set RPM

(kg.cm)
1200rpm 90rpm
Continuous M590-(0/6)01 Continuous 90 100/110 50/60 4 1.5/1.41 90~1400/90~1700 4.76/5.86 8.4/10.2 5/6.1
M590-(0/6)02 200/220 50/60 0.76/0.72 90~1400/90~1700 4.3/4.21 8/8.7 4.4/4.4
M590-(0/6)02E 230/240 50 0.66/0.68 90~1400 4.93/5.08 9.8/10.2 5.2/5.6
M590-0* - 90W Round Shaft Dim. (PDF)  (DWG)  (STEP)
M590-6* - 90W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)
