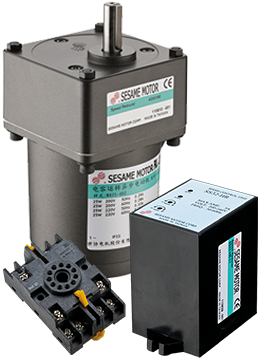

Separated Type (SS Series)

  • Easy wiring and speed control.
  • Induction and reversible motor equipped with generator, various wiring methods and control types available.
  • Built-in electronic brake circuits for instant braking.
  • Wide range of variable speed.
  • Output 6W-90W
  • To work with speed reducer is available (motor with pinion shaft, GN or GX model)



Product Applications:

.Machine Tool Accessories
.Cutting Equipment
.Bar Feeder
.Conveyor Equipment
.Packaging Machinery
.Food Processing Machinery
.Printing Machine
.Agricultural Machinery
.Medical Equipment

Separated Type Speed Control Motor Specification

6W
Model Rated
Time
(min)
Rated
Output
(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque
(kg.cm)
Max. Torque/
Pre-set RPM
(kg.cm)
1200rpm 90rpm
Induction 2IK6RA(GN)-A Continuous 6 100/110 50/60 4 0.22/0.21 90~1400/90~1700 0.7/0.63 0.4/0.55 0.72/0.5
2IK6RA(GN)-C 200/220 50/60 0.1/0.1 90~1400/90~1700 0.65/0.7 0.44/0.66 0.6/0.7
2IK6RA(GN)-CE 230/240 50 0.11/0.1 90~1400 0.74/0.77 0.39/0.52 0.72/0.8
Reversible 2RK6RA(GN)-A 30 6 100/110 50/60 4 0.24/0.25 90~1400/90~1700 0.72/0.7 0.3/0.49 0.6/0.52
2RK6RA(GN)-C 200/220 50/60 0.13/0.15 90~1400/90~1700 0.72/0.8 0.26/0.52 0.67/0.7
2RK6RA(GN)-CE 230/240 50 0.14/0.14 90~1400 0.95/0.94 0.36/0.31 0.8/0.8
2IK6RA & 2RK6RA - 6W Round Shaft Dim. (PDF)  (DWG)  (STEP)
2IK6RGN & 2RK6RGN - 6W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)


15W
Model Rated
Time
(min)
Rated
Output
(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque
(kg.cm)
Max. Torque/
Pre-set RPM
(kg.cm)
1200rpm 90rpm
Induction 3IK15RA(GN)-A Continuous 15 100/110 50/60 4 0.36/0.35 90~1400/90~1700 0.89/1.04 0.9/1.5 1.0/1.1
3IK15RA(GN)-C 200/220 50/60 0.18/0.18 90~1400/90~1700 0.75/1.1 1.1/1.5 1.0/1.1
3IK15RA(GN)-CE 230/240 50 0.17/0.17 90~1400 1.06/1.06 1.40/1.32 1.02/1.25
Reversible 3RK15RA(GN)-A 30 15 100/110 50/60 4 0.37/0.44 90~1400/90~1700 1.17/1.24 0.1/1.2 0.9/0.85
3RK15RA(GN)-C 200/220 50/60 0.2/0.23 90~1400/90~1700 0.96/1.34 1.4/1.2 0.9/0.85
3RK15RA(GN)-CE 230/240 50 0.19/0.21 90~1400 1.36/1.31 1.52/1.4 1.2/1.15
3IK15RA & 3RK15RA - 15W Round Shaft Dim. (PDF)  (DWG)  (STEP)
3IK15RGN & 3RK15RGN - 15W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

25W
Model Rated
Time
(min)
Rated
Output
(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque
(kg.cm)
Max. Torque/
Pre-set RPM
(kg.cm)
1200rpm 90rpm
Induction 4IK25RA(GN)-A Continuous 25 100/110 50/60 4 0.57/0.45 90~1400/90~1700 1.4/1.4 2.17/2.5 1.4/1.4
4IK25RA(GN)-C 200/220 50/60 0.28/0.25 90~1400/90~1700 1.57/1.38 2.1/2.4 1.6/1.3
4IK25RA(GN)-CE 230/240 50 0.25/0.24 90~1400 1.38/1.55 2.2/2.4 1.5/1.7
Reversible 4RK25RA(GN)-A 30 25 100/110 50/60 4 0.56/0.51 90~1400/90~1700 1.65/1.92 2.2/2.9 1.5/1.9
4RK25RA(GN)-C 200/220 50/60 0.29/0.3 90~1400/90~1700 1.98/1.94 2.4/2.6 1.9/1.8
4RK25RA(GN)-CE 230/240 50 0.25/0.25 90~1400 2.22/2.19 2.7/2.9 2.24/2.3
4IK25RA & 4RK25RA - 25W Round Shaft Dim. (PDF)  (DWG)  (STEP)
4IK25RGN & 4RK25RGN - 25W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

40W
Model Rated
Time
(min)
Rated
Output
(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque
(kg.cm)
Max. Torque/
Pre-set RPM
(kg.cm)
1200rpm 90rpm
Induction 5IK40RA(GN)-A Continuous 40 100/110 50/60 4 0.87/0.76 90~1400/90~1700 2.14/2.66 3.18/4.2 2.2/2.8
5IK40RA(GN)-C 200/220 50/60 0.4/0.34 90~1400/90~1700 1.75/2.17 3.6/4.2 1.8/2.1
5IK40-RA(GN)-CE 230/240 50 0.32/0.32 90~1400 2.3/2.58 4.4/4.6 2.4/2.6
Reversible 5RK40RA(GN)-A 30 40 100/110 50/60 4 0.99/1.01 90~1400/90~1700 2.43/3.1 2.8/3.4 1.9/2.4
5RK40RA(GN)-C 200/220 50/60 0.54/0.53 90~1400/90~1700 3.76/2.37 3/3.4 3/2.2
5RK40RA(GN)-CE 230/240 50 0.49/0.44 90~1400 2.41/3.17 3/3.9 2/2.6
5IK40RA & 5RK40RGA - 40W Round Shaft Dim. (PDF)  (DWG)  (STEP)
5RK40RGN & 5RK40RGN - 40W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

60W
Model Rated
Time
(min)
Rated
Output
(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque
(kg.cm)
Max. Torque/
Pre-set RPM
(kg.cm)
1200rpm 90rpm
Induction 5IK60RA(GN)-AF
5IK60RGX-AF
Continuous 60 100/110 50/60 4 1.8/1.12 90~1400/90~1700 2.6/2.94 5.6/6.9 3.5/4.0
5IK60RA(GN)-CF
5IK60RGX-CF
200/220 50/60 0.64/0.54 90~1400/90~1700 3.62/4.41 5.6/6.9 4.6/4.4
5IK60RA(GN)-CEF
5IK60RGX-CEF
230/240 50 0.56/0.55 90~1400 4.14/5.22 6.17/7.2 4.37/5.2
Reversible 5RK60RA(GN)-AF
5RK60RGX-AF
30 60 100/110 50/60 4 1.34/1.25 90~1400/90~1700 3.08/4.03 4.6/5.6 3.2/3.3
5RK60RA(GN)-CF
5RK60RGX-CF
200/220 50/60 0.75/0.73 90~1400/90~1700 2.38/2.97 5.5/5.8 2.3/2.5
5RK60RA(GN)-CEF
5RK60RGX-CEF
230/240 50 0.57/0.63 90~1400 4.33/4.72 6.02/5.6 4.73/4.1
5IK60RA & 5RK60RA - 60W Round Shaft Dim. (PDF)  (DWG)  (STEP)
5IK60RGN & 5RK60RGN - 60W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)
5IK60RGX & 5RK60RGX- 60W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)

90W
Model Rated
Time
(min)
Rated
Output
(W)
Voltage
(V)
Freq.
(Hz)
Pole
(P)
Current
(A)
Adjustable Range
(rpm)
Starting
Torque
(kg.cm)
Max. Torque/
Pre-set RPM
(kg.cm)
Capacitor
1200rpm 90rpm Capacity
(μF)
Withstand
Voltage
(VAC)
5IK90RA(GS/GX)-AF Continuous 90 100/110 50/60 4 1.5/1.41 90~1400/90~1700 4.76/5.86 8.4/10.2 5/6.1 22 250
5IK90RA(GS/GX)-CF 200/220 50/60 0.76/0.72 90~1400/90~1700 4.3/4.21 8/8.7 4.4/4.4 5 450
5IK90RA(GS/GX)-CEF 230/240 50 0.66/0.68 90~1400 4.93/5.08 9.8/10.2 5.2/5.6 5 450
5IK90RA - 90W Round Shaft Dim. (PDF)  (DWG)  (STEP)
5IK90RGS - 90W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)
5IK90RGX - 90W Pinion Shaft (Helical Gear) Dim. (PDF)  (DWG)  (STEP)


Separated type speed controller specification
